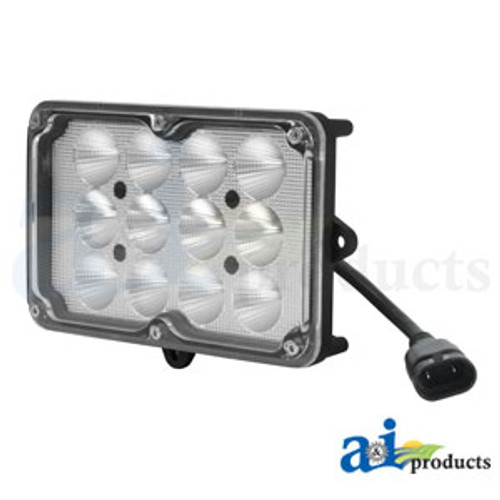

Work Lamp, LED, Flood / Spot Combo , Hi / Low, Rectangle A-WL1300

Replacement For Lights On Top Of The Cab On Case IH Combines And Cotton Pickers

Replacement For Front Hood Lights On Case 90-96 Series Tractors

Dim A (1)

12 - 5 Watt Cree LED Diodes

Dim B (2)

High & Low Beam

Dim C (3)

Raw Lumens Low Beam 2000 / Effective Lumens Low Beam 960

Dim D (4)

Raw Lumens High Beam 4800 / Effective Lumens High Beam 2950

Dim E (5)

Draws 5 Amps @ 12 Volts & 2.5 Amps @ 24 Volts (Watts / Volts = Amps)

Dim F (6)

Voltage: 10-30 Volt DC

Dim G (7)

Body Size: 6.50" (16.5cm) Width X 4.15" (10.5cm) Height X 2.45" (6.2cm) Depth

Dim H (8)

Operating Temperature: -40 ~ 140 Fahrenheit /-40 ~ 60 Celsius

Dim I (9)

Lens Material: Polycarbonate

Dim J (10)

Built In Premium EMC Noise Suppression Filter

Replaces

353656A1, 138224A1, 183161A1

Crossed From:

TL6090

A & I MEGA-CROSS

138224A1

CASE-IH

183161A1

CASE-IH

2919

A & I MEGA-CROSS

353656A1

CASE-IH

• Case-IH COMBINE: 2144
• Case-IH COMBINE: 2166
• Case-IH COMBINE: 2188
• Case-IH COMBINE: 2344
• Case-IH COMBINE: 2366
• Case-IH COMBINE: 2377
• Case-IH COMBINE: 2388
• Case-IH COMBINE: 2577
• Case-IH COMBINE: 2588
• Case-IH COTTON PICKER: CPX420
• Case-IH COTTON PICKER: CPX610
• Case-IH COTTON PICKER: CPX620
• Case-IH COTTON PICKER: 2155
• Case-IH COTTON PICKER: 2555
• Case-IH COTTON PICKER: 420
• Case-IH COTTON PICKER: 625
• Case-IH TRACTOR: 1294
• Case-IH TRACTOR: 1394
• Case-IH TRACTOR: 1494
• Case-IH TRACTOR: 1594
• Case-IH TRACTOR: 1690
• Case-IH TRACTOR: 1896
• Case-IH TRACTOR: 2090
• Case-IH TRACTOR: 2094
• Case-IH TRACTOR: 2096
• Case-IH TRACTOR: 2290
• Case-IH TRACTOR: 2294
• Case-IH TRACTOR: 2390
• Case-IH TRACTOR: 2394
• Case-IH TRACTOR: 2590
• Case-IH TRACTOR: 2594
• Case-IH TRACTOR: 2870
• Case-IH TRACTOR: 3294
• Case-IH TRACTOR: 3394
• Case-IH TRACTOR: 3594
• Case-IH TRACTOR: 385
• Case-IH TRACTOR: 4490
• Case-IH TRACTOR: 4494
• Case-IH TRACTOR: 4690
• Case-IH TRACTOR: 4694
• Case-IH TRACTOR: 485
• Case-IH TRACTOR: 4890
• Case-IH TRACTOR: 4894
• Case-IH TRACTOR: 4994
• Case-IH TRACTOR: 585
• Case-IH TRACTOR: 685
• Case-IH TRACTOR: 885
