For Tier 2 & Tier 3 Applications
4 Valves Per Cylinder
Piston Marked : RE515037
Connecting Rod Marked: R500335 (Fracture Split)
Connecting Rod Marked: R500335 (Fracture Split)
- Bore
- 4.19" (106.5 MM)
- Includes
- Piston Liner Kits, Main Bearings, Thrust Bearing, Connecting Rod Bearings, Crankshaft Seals, Overhaul Gasket Set, Connecting Rod Bushings, Connecting Rod Bolts, Balancer Shaft Bushings & Camshaft Bushing.
- Pin Diameter
- 1.625" (41 MM)
Mega-Cross
- Replaces:
- RE526972 ~ JOHN DEERE
- Crossed From:
- HCTRE546978 ~ A & I MEGA-CROSS

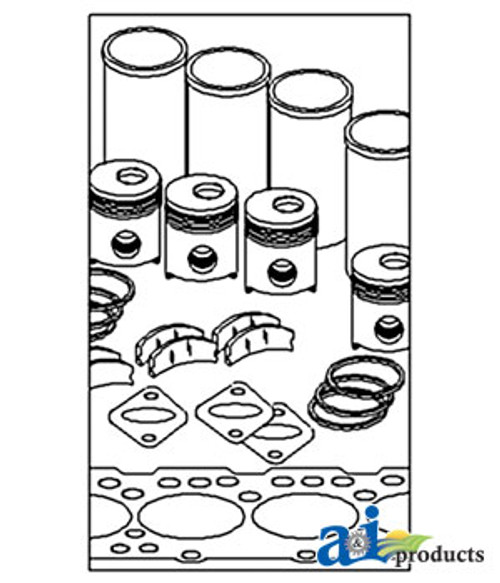

Included In This Kit
- Group Description: Piston Liner Kit
- Component: A-RE530616
- Size / Desc: 4.00
- Group Description: Main Bearing; Std.
- Component: A-RE65165
- Size / Desc: 4.00
- Group Description: Main Bearing; .010
- Component: A-RE65911
- Size / Desc: 4.00
- Group Description: Main Bearing; .020
- Component: A-RE65165B
- Size / Desc: 4.00
- Group Description: Thrust Bearing; Std.
- Component: A-RE65168
- Size / Desc: 1.00
- Group Description: Thrust Bearing; .010
- Component: A-RE65912
- Size / Desc: 1.00
- Group Description: Thrust Bearing; .020
- Component: A-RE65168B
- Size / Desc: 1.00
- Group Description: Crankshaft Seal; Front
- Component: A-RE59810
- Size / Desc: 1.00
- Group Description: Crankshaft Seal; Rear
- Component: A-AR92893
- Size / Desc: not used w/ flywheel hou
- Qty: 1.00
- Group Description: O/H Gasket Set
- Component: A-RE536962
- Size / Desc: 1.00
- Group Description: Connecting Rod Bushing
- Component: A-R114082
- Size / Desc: 4.00
- Group Description: Connecting Rod Bolt
- Component: A-R501124
- Size / Desc: 8.00
- Group Description: Balancer Shaft Bushing
- Component: A-R115299
- Size / Desc: 6.00
- Group Description: Camshaft Bushing
- Component: A-R119874
- Size / Desc: 1.00
- Group Description: Connecting Rod Brg.; Std
- Component: A-RE65908
- Size / Desc: 4.00
- Group Description: Connecting Rod Brg.; .010
- Component: A-RE65909
- Size / Desc: 4.00
- Group Description: Connecting Rod Brg.; .020
- Component: A-RE65908B
- Size / Desc: 4.00
Associated Items
- Item Number: A-AR65507
- Description: O-Rings, Liner
- Item Number: A-IK546978
- Description: In Frame Engine Overhaul Kit
- Item Number: A-RE48818
- Description: Rings, Piston
- Item Number: A-RE500608
- Description: Connecting Rod
- Item Number: A-RE500734
- Description: Water Pump; High Flow
- Item Number: A-RE504638
- Description: Crankshaft
- Item Number: A-RE504914
- Description: Oil Pump
- Item Number: A-RE506195
- Description: Crankshaft; Taper Nose
- Item Number: A-RE508566
- Description: Water Pump Insert
- Item Number: A-RE515037
- Description: Piston
- Item Number: A-RE518097
- Description: Belt Tensioner
- Item Number: A-RE521756
- Description: Oil Pump
- Item Number: A-RE546918
- Description: Water Pump
- Item Number: A-RE557890
- Description: Valve, Intake; 30�
- Item Number: A-RE557891
- Description: Valve, Exhaust; 30�
- Item Number: A-R114282
- Description: Flywheel Ring Gear; 142T
- Item Number: A-R116397
- Description: Piston Liner
- Item Number: A-R123565
- Description: Cam Follower
- Item Number: A-R28811
- Description: Flywheel Ring Gear; 129T
- Item Number: A-R502511
- Description: Cyl. Head Bolt
Sections and Models
- Engine Overhaul Kits > 4045T/H Tier 2 & 3
- John Deere INDUSTRIAL/CONSTRUCTION: TC444H
- John Deere INDUSTRIAL/CONSTRUCTION: 1010D
- John Deere INDUSTRIAL/CONSTRUCTION: 1010E
- John Deere INDUSTRIAL/CONSTRUCTION: 120
- John Deere INDUSTRIAL/CONSTRUCTION: 444H
- John Deere INDUSTRIAL/CONSTRUCTION: 444HCL
- John Deere INDUSTRIAL/CONSTRUCTION: 450G
- John Deere INDUSTRIAL/CONSTRUCTION: 455G
- John Deere INDUSTRIAL/CONSTRUCTION: 550G
- John Deere INDUSTRIAL/CONSTRUCTION: 550H
- John Deere INDUSTRIAL/CONSTRUCTION: 555G
- John Deere INDUSTRIAL/CONSTRUCTION: 650G
- John Deere INDUSTRIAL/CONSTRUCTION: 810D
- John Deere INDUSTRIAL/CONSTRUCTION: 810E
- John Deere INDUSTRIAL/CONSTRUCTION: 850J
- John Deere SKID STEER LOADER: 280
- John Deere SKID STEER LOADER: 280 (Series II)
- John Deere TRACTOR: 6430
- John Deere TRACTOR: 6534
- John Deere TRACTOR: 7130
