(HW-FJX90) Female JIC 37° - Swivel - 90° Elbow A-FJX90-04-04-W

$12.25
SKU:
A-FJX90-04-04-W

Weight:
0.12 LBS
Recent changes to improve the appearance of the " hose fittings make the appearance of the new fittings slightly different from earlier ones. Current inventory may be mixed between old and new style, but this will not cause any issues. Both fitting styles can continue to be used with no changes to the crimp specifications.

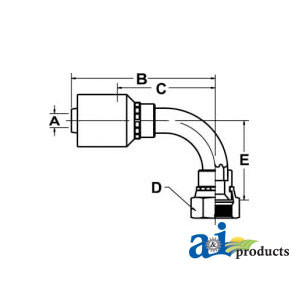

  • Dim A (1) : 0.250", 0.250"
  • Dim B (2) : 2.695"
  • Dim C (3) : 1.635"
  • Dim D (4) : 9/16"
  • Dim E (5) : 0.830"
  • Replaces : 13943-4-4
  • Thread Size : 7/16 x 20

  • Sections and Models:
  • Hydraulic Parts > Crimp-On Fittings
  • HW Series JIC 37: Female, Swivel, 90 Elbow

    • mega-cross:
  • Replaces: : 13943-4-4 : MISCELLANEOUS
  • 1394344 : RIVERSIDE TRACTOR
  • Crossed From: : WH04U-664 : A & I MEGA-CROSS
  • 42-0490 : FARM OYL
  • 4796-37596 : JOHN DAY

  • Machine Types : Jic 37
  • Makes : HW Series
  • Models : Female, Swivel, 90 Elbow
  • Models :
