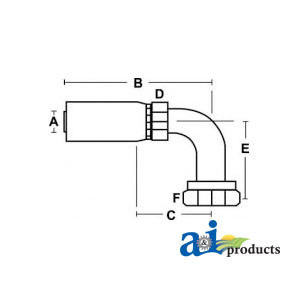

- Dim A (1) : 0.500", 0.500"
- Dim B (2) : 3.250"
- Dim C (3) : 1.750"
- Dim D (4) : 7/8"
- Dim E (5) : 1.230"
- Dim F (6) : 1"
- Replaces : Dayco # HY08-10FJ90T - Weatherhead # 08U-670
- Thread Size : 7/8x14
- Sections and Models:
- Hydraulic Parts > Crimp-On Fittings
- HC Series JIC 37: Female, Swivel, 90 Elbow
- mega-cross:
- Replaces: : HY08-10FJ90T : DAYCO
- 08U-670 : WEATHERHEAD
- 139HY-10-8 : MISCELLANEOUS
- Crossed From: : FJ9132-1008S : AEROQUIP
- 41-0515 : FARM OYL
- 666448C1 : CASE/IH
- Machine Types : Jic 37
- Makes : HC Series
- Models : Female, Swivel, 90 Elbow
- Models :
