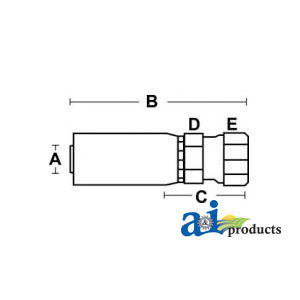

- Dim A (1) : 1.000", 1.000"
- Dim B (2) : 3.408"
- Dim C (3) : 1.715"
- Dim D (4) : 1-3/8"
- Dim E (5) : 1-1/4"
- Replaces : Dayco # HY16-12FJ - Weatherhead # 16U-612
- Thread Size : 1-1/16 x 12
- Sections and Models:
- Hydraulic Parts > Crimp-On Fittings
- HC Series JIC 37: Female, Swivel, Straight
- mega-cross:
- Replaces: : HY16-12FJ : DAYCO
- 106HY-12-16 : MISCELLANEOUS
- 16U-612 : WEATHERHEAD
- Crossed From: : B90877 : CASE/IH
- SW03902 : A & I MEGA-CROSS
- Machine Types : Jic 37
- Makes : HC Series
- Models : Female, Swivel, Straight
- Models :
