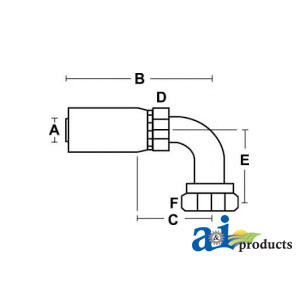

- Dim A (1) : 0.750", 0.750"
- Dim B (2) : 4.188"
- Dim C (3) : 2.418"
- Dim D (4) : 1-3/8"
- Dim E (5) : 2.630"
- Dim F (6) : 1-5/8"
- Replaces : Dayco # HY12-130F90T - Weatherhead # 12U-A36
- Thread Size : 1-7/16 x 12
- Sections and Models:
- Hydraulic Parts > Crimp-On Fittings
- HC Series Seal Lok: Female, Swivel, 90 Elbow
- mega-cross:
- Replaces: : HY12-130F90T : DAYCO
- HY12-160F90T : DAYCO
- 1J9HY-16-12 : MISCELLANEOUS
- 12U-A36 : WEATHERHEAD
- Machine Types : Seal Lok
- Makes : HC Series
- Models : Female, Swivel, 90 Elbow
- Models :
