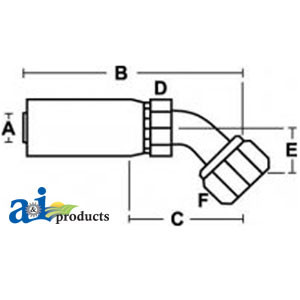

- Dim A (1) : 0.625", 0.625"
- Dim B (2) : 4.329"
- Dim C (3) : 2.449"
- Dim D (4) : 1-1/8"
- Dim E (5) : 1.120"
- Dim F (6) : 1-3/8"
- Replaces : Dayco # HY10-120F45T - Weatherhead # 10M-L72, 10U-L72
- Thread Size : 1-3/16 x 12
- Sections and Models:
- Hydraulic Parts > Crimp-On Fittings
- HC Series Seal Lok: Female, Swivel, 45 Elbow
- mega-cross:
- Replaces: : HY10-120F45T : DAYCO
- 1J7HY-12-10 : MISCELLANEOUS
- 10M-L72 : WEATHERHEAD
- 10U-L72 : WEATHERHEAD
- Machine Types : Seal Lok
- Makes : HC Series
- Models : Female, Swivel, 45 Elbow
