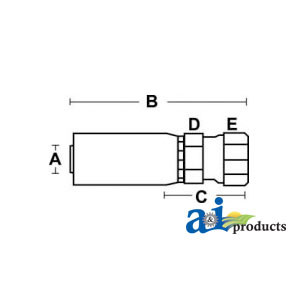

- Dim A (1) : 0.750", 0.750"
- Dim B (2) : 3.214"
- Dim C (3) : 1.621"
- Dim D (4) : 1-1/8"
- Dim E (5) : 1-1/8"
- Replaces : Dayco # HY12-100FT - Weatherhead # 12U-S70
- Thread Size : 1 x 14
- Sections and Models:
- Hydraulic Parts > Crimp-On Fittings
- HC Series Seal Lok: Female, Swivel, Straight
- mega-cross:
- Replaces: : HY12-100FT : DAYCO
- 1JSHY-10-12 : MISCELLANEOUS
- 12U-S70 : WEATHERHEAD
- Crossed From: : ZJM47 : CASE/IH
- Machine Types : Seal Lok
- Makes : HC Series
- Models : Female, Swivel, Straight
- Models :
