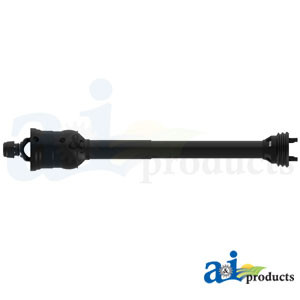

Domestic 80° CV Driveshaft Less Implement Yoke A-14605867

80 degree constant velocity driveline less implement yoke. Driveline is furnished without cross & bearing kit and implement yoke. Select kit and implement yoke as required. When cross and bearing kit and implement yoke are assembled, the overall compressed length of the driveline will be as listed. Driveline length: 67" to 84", Shaft size 1-11/16" 20 spline. Tractor yoke: 1-3/8" 21 spline. Driveline rated as a category 5, 35 series.

Original Weasler part.

Category

5

Series

35

Shaft Size

1 11/16" - 20 spline

Tractor Yoke

1 3/8" - 21 spline

Mega-Cross

Replaces:

• DC536720 ~ DRIVELINE
• PM14603567 ~ JOHN DEERE
• 14603567 ~ WEASLER 2
• 14603567-A ~ DRIVELINE

Crossed From:

• PM14603567 ~ JOHN DEERE
• W14603567DS ~ CASE-IH
• 6713-45963 ~ JOHN DAY

Associated Items

• Item Number: A-D351106
• Description: Safety Slide Lock Tractor Yoke

• Item Number: A-D351120
• Description: Safety Slide Lock Tractor Yoke

• Item Number: A-D351121
• Description: Safety Slide Lock Tractor Yoke

• Item Number: A-D351228
• Description: Safety Slide Lock Tractor Yoke

• Item Number: A-D351420
• Description: Ball Shear Clutch, 35 Series, 1 3/4" X 20 Spline, 27,800 in/lb Setting, w/ Safety Slide Lock

• Item Number: A-D351421
• Description: Shear Bolt Clutch. 1-3/8" 21 Spline, 29,207 in/lb (3300 NM), QD pin.

• Item Number: A-D352000
• Description: Cross & Bearing Kit

• Item Number: A-D352118
• Description: Saftey Slide Lock Tractor Yoke 1.125" hex

• Item Number: A-D353000
• Description: Shaft Weld Yoke w/ Bearing Groove

• Item Number: A-D358020
• Description: Implement Yoke Round Bore w/ Keyway & Set Screw

• Item Number: A-D358022
• Description: Implement Yoke Round Bore w/ Keyway & Set Screw

• Item Number: A-D358024
• Description: Implement Yoke Round Bore w/ Keyway & Set Screw

• Item Number: A-D358118
• Description: Implement Yoke, Splined 1 1/8" - 6 Spline, 4 3/16" Length, 21/64" Drill Through Hole

• Item Number: A-D358222
• Description: Implement Yoke Shear Pin w/ Pin Hole

• Item Number: A-D358624
• Description: Implement Yoke Round Bore w/ Double Keyway & Set Screw

• Item Number: A-D358720
• Description: Implement Yoke Clamp Style

• Item Number: A-D358721
• Description: Implement Yoke Clamp Style

• Item Number: A-102-3505
• Description: Quick Disconnect Tractor Yoke

• Item Number: A-104-3506
• Description: Ball Shear Clutch, 35 Series, 1 3/8" X 6 Spline, 27,800 in/lb Setting, w/ Safety Slide Lock

• Item Number: A-800-3516
• Description: Round Bore Implement Yoke (w/ Keyway & Set Screw)

Sections and Models

Driveline (by application) > CV Driveline Assembly

• Gehl ROUND BALER: 2880 (1000 RPM)

Driveline > CV Driveline Assembly

• (Miscellaneous) Alternative CV QD1: (UNDEFINED)
• Weasler Domestic 80 CV: 35 Series
