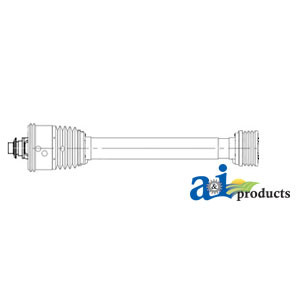

Constant Velocity Shaft less Implement Yoke A-BCG84810

$1,460.49
SKU:
A-BCG84810

Weight:
71.00 LBS

Constant Velocity Shaft without implement yoke. C-to-C Length: 48" (1210 mm). Tractor end: 1-3/8" - 6 Spline. Size: 8. It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out. Fits Bondioli & Pavesi Global Series 80 EL CV: Size 8.

Select Implement yoke needed from associated items.

It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.

This is a size 8 shaft with a size 7 implement cross kit. Please order a size 7 implement yoke from the associated items list

C to C Min
48"
Implement
Cross Kit Less Yoke
Size
8
Tractor
1 3/8" 6 Spline
Associated Items
  • Item Number: A-BP507170351-A
  • Description: Implement Yoke, Splined 1 3/8" - 6 Spline w/ QDP
  • Item Number: A-BP507173751-A
  • Description: Implement Yoke, Splined 1 3/8" - 21 Spline w/ QDP
  • Item Number: A-BP5090L0360
  • Description: Implement Yoke, Splined 1 3/8" - 6 Spline w/ Tappered Pin
  • Item Number: A-BP509073753
  • Description: Implement Yoke, Splined 1 3/8" - 21 Spline w/ Interfering Clamp Bolt
  • Item Number: A-BP509073851
  • Description: Implement Yoke, Splined 1 3/4" - 20 Spline w/ Interfering Clamp Bolt
  • Item Number: A-BP5720L0376
  • Description: Implement Yoke, Splined 1 3/8" - 6 Spline w/ Slide Collar
  • Item Number: A-BP5720L0476
  • Description: Implement Yoke, Splined 1 3/4" - 6 Spline w/ Slide Collar
  • Item Number: A-BP5720L3776
  • Description: Implement Yoke, Splined 1 3/8" - 21 Spline w/ Slide Collar
  • Item Number: A-BP5720L3855
  • Description: Implement Yoke, Splined 1 3/4" - 20 Spline w/ Ball Collar
Sections and Models
Driveline > CV Driveline Assembly
  • Bondioli & Pavesi SIZE 8: GLOBAL SERIES 80 EL CV
