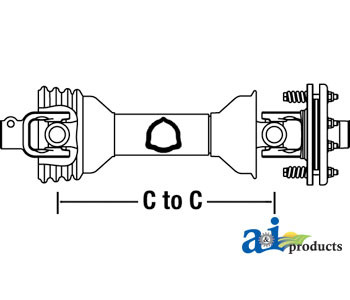

- New Batwing Mower Wing Shaft, size 8. Shaft minimum C-to-C length: 67" (1710 mm), Maximum C-to-C length: 87" (2210 mm), Overall collapsed length: 80" (2026 mm). Tractor yoke is 1-3/4" with 20 splines. Implement yoke is a 1-3/4" 20 spline clutch. Replaces Bondioli & Pavesi No. BP8160003FF3. Fits Land Pride Rotary Cutters.
- Complete Replacement- Components From Original Will Not Interchange.
- It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
- Dim C (3) : 2210 mm/ 87" [max c-to-c length
- C to C Min : 1600 mm/ 63"
- Implement : 1 3/4"- 20 Clutch
- Overall Collapsed Length : 2026 mm/ 80"
- Size : 8
- Tractor : 1 3/4"- 20
- Sections and Models:
- Driveline (by application) > Driveline Assembly
- Land Pride ROTARY CUTTER: RCBM6010 (CAT. 5)
- Land Pride ROTARY CUTTER: RCBM6015 (CAT. 5)
- Land Pride ROTARY CUTTER: RCM6015 (SN 461934>)
- Land Pride ROTARY CUTTER: RC6015 (SN 461934>)
- mega-cross:
- Stocked As: : A-BP8160003FF3
- Machine Types : Rotary Cutter
- Makes : Land Pride
- Models : Rcm6015, Rc6015, Rcbm6015, Rcbm6010
- Models :
