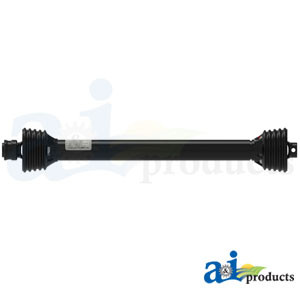

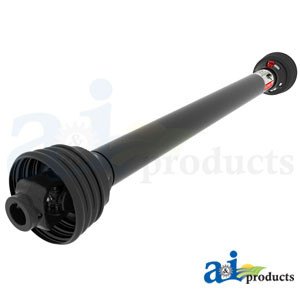

- New Complete Driveline with Shear Bolt Clutch, size 8. 100 Series, category 6 HD (95 hp). Minimum C-to-C length: 45" (1160) mm; Maximum C-to-C length: 74" (1880 mm), Total Collapsed C-to-C length: 55" (1415 mm). Tractor end: 1-3/8" 6 Spline quick disconnect. Implement end: 1-3/4" 20 Spline with shear bolt clamp. Fits Loftness Snow Blower/Thrower.
- It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
- Dim L (12) : 1420 mm/ 55"
- C to C : 1150 mm/ 45"
- Implement : 1 3/4"- 20 w/ S.B. Clamp
- Tractor : 1 3/8"-6 QD
- Sections and Models:
- Driveline (by application) > Driveline Assembly
- Loftness SNOW BLOWER/THROWER: 1082H
- Loftness SNOW BLOWER/THROWER: 1082I
- Loftness SNOW BLOWER/THROWER: 1083I
- Loftness SNOW BLOWER/THROWER: 962H
- mega-cross:
- Stocked As: : A-CS84818
- Machine Types : Snow Blower/thrower
- Makes : Loftness
- Models : 1082h, 1083i, 1082i, 962h
